Chart Legend

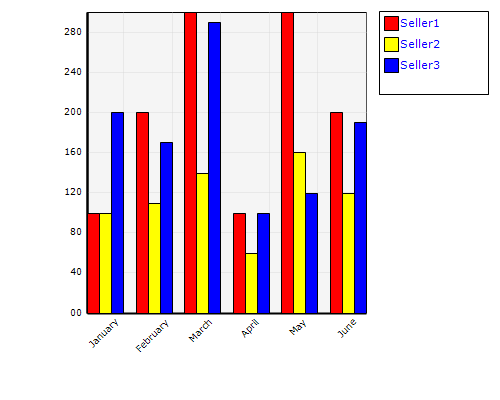

Winnovative control offers the possibility to display a legend of the data series. You can change the position (left, right, top or bottom), font, color, margins, border and other properties.

100 100 200 200 110 170 300 140 290 100 60 100 300 160 120 200 120 190

Source code

    protected void Page_Load(object sender, EventArgs e)
    {
        if (!IsPostBack)
        {
            WebChart1.DataSource = Winnovative.DataSources.GetTestData2();

            WebChart1.LegendBox.Visible = true;
            WebChart1.LegendBox.Font = new System.Drawing.Font("Verdana", 8);
            WebChart1.LegendBox.Color = Color.Blue;
            WebChart1.LegendBox.BorderSize = 1;
            WebChart1.LegendBox.Margins.Bottom = 300;

        }
    }
