Chart Titles

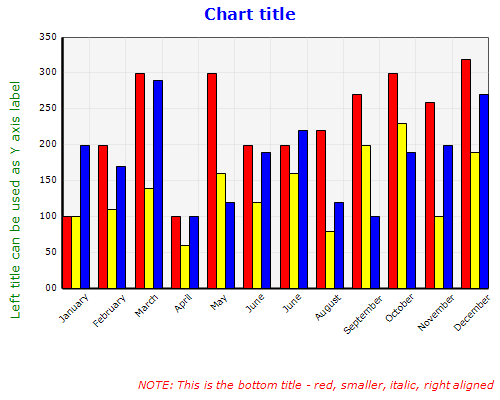

Winnovative control offers the possibility to set 4 titles of the chart (top, bottom, left and right). For each title, you can specify the text, font, color and alignment.

100 100 200 200 110 170 300 140 290 100 60 100 300 160 120 200 120 190 200 160 220 220 80 120 270 200 100 300 230 190 260 100 200 320 190 270

Source code

    protected void Page_Load(object sender, EventArgs e)
    {
        if (!IsPostBack)
        {
            WebChart1.DataSource = Winnovative.DataSources.GetTestData();

            // top title
            WebChart1.Titles.Top.Visible = true;
            WebChart1.Titles.Top.Text = "Chart title";
            WebChart1.Titles.Top.Color = Color.Blue;
            WebChart1.Titles.Top.Font = new Font("Verdana", 12, FontStyle.Bold);

            // bottom title
            WebChart1.Titles.Bottom.Visible = true;
            WebChart1.Titles.Bottom.Text = "NOTE: This is the bottom title - red, smaller, italic, right aligned";
            WebChart1.Titles.Bottom.Color = Color.Red;
            WebChart1.Titles.Bottom.Font = new Font("Verdana", 8, FontStyle.Italic);
            WebChart1.Titles.Bottom.Align = Winnovative.Align.Right;

            // left title
            WebChart1.Titles.Left.Visible = true;
            WebChart1.Titles.Left.Text = "Left title can be used as Y axis label";
            WebChart1.Titles.Left.Color = Color.Green;
            WebChart1.Titles.Left.Font = new Font("Verdana", 10);

        }
    }

    /// <summary>
    /// This method returns a sample DataTable with test data
    /// The tables has the following structure:
    /// - Labels (string)
    /// - Date (DateTime)
    /// - Seller1 (number)
    /// - Seller2 (number)
    /// - Seller3 (number)
    /// </summary>
    public static DataTable GetTestData()
    {
        DataTable dt = new DataTable();
        dt.Columns.Add("Labels", typeof(string));
        dt.Columns.Add("Date", typeof(DateTime));
        dt.Columns.Add("Seller1", typeof(int));
        dt.Columns.Add("Seller2", typeof(int));
        dt.Columns.Add("Seller3", typeof(int));

        DataRow row = dt.NewRow();
        row["Date"] = new DateTime(2006, 1, 1);
        row["Labels"] = "January";
        row["Seller1"] = 100;
        row["Seller2"] = 100;
        row["Seller3"] = 200;
        dt.Rows.Add(row);

        row = dt.NewRow();
        row["Date"] = new DateTime(2006, 2, 1);
        row["Labels"] = "February";
        row["Seller1"] = 200;
        row["Seller2"] = 110;
        row["Seller3"] = 170;
        dt.Rows.Add(row);

        row = dt.NewRow();
        row["Date"] = new DateTime(2006, 3, 1);
        row["Labels"] = "March";
        row["Seller1"] = 300;
        row["Seller2"] = 140;
        row["Seller3"] = 290;
        dt.Rows.Add(row);

        row = dt.NewRow();
        row["Date"] = new DateTime(2006, 4, 1);
        row["Labels"] = "April";
        row["Seller1"] = 100;
        row["Seller2"] = 60;
        row["Seller3"] = 100;
        dt.Rows.Add(row);

        row = dt.NewRow();
        row["Date"] = new DateTime(2006, 5, 1);
        row["Labels"] = "May";
        row["Seller1"] = 300;
        row["Seller2"] = 160;
        row["Seller3"] = 120;
        dt.Rows.Add(row);

        row = dt.NewRow();
        row["Date"] = new DateTime(2006, 6, 1);
        row["Labels"] = "June";
        row["Seller1"] = 200;
        row["Seller2"] = 120;
        row["Seller3"] = 190;
        dt.Rows.Add(row);

        row = dt.NewRow();
        row["Date"] = new DateTime(2006, 7, 1);
        row["Labels"] = "June";
        row["Seller1"] = 200;
        row["Seller2"] = 160;
        row["Seller3"] = 220;
        dt.Rows.Add(row);

        row = dt.NewRow();
        row["Date"] = new DateTime(2006, 8, 1);
        row["Labels"] = "August";
        row["Seller1"] = 220;
        row["Seller2"] = 80;
        row["Seller3"] = 120;
        dt.Rows.Add(row);

        row = dt.NewRow();
        row["Date"] = new DateTime(2006, 9, 1);
        row["Labels"] = "September";
        row["Seller1"] = 270;
        row["Seller2"] = 200;
        row["Seller3"] = 100;
        dt.Rows.Add(row);

        row = dt.NewRow();
        row["Date"] = new DateTime(2006, 10, 1);
        row["Labels"] = "October";
        row["Seller1"] = 300;
        row["Seller2"] = 230;
        row["Seller3"] = 190;
        dt.Rows.Add(row);

        row = dt.NewRow();
        row["Date"] = new DateTime(2006, 11, 1);
        row["Labels"] = "November";
        row["Seller1"] = 260;
        row["Seller2"] = 100;
        row["Seller3"] = 200;
        dt.Rows.Add(row);

        row = dt.NewRow();
        row["Date"] = new DateTime(2006, 12, 1);
        row["Labels"] = "December";
        row["Seller1"] = 320;
        row["Seller2"] = 190;
        row["Seller3"] = 270;
        dt.Rows.Add(row);

        return dt;

    }
